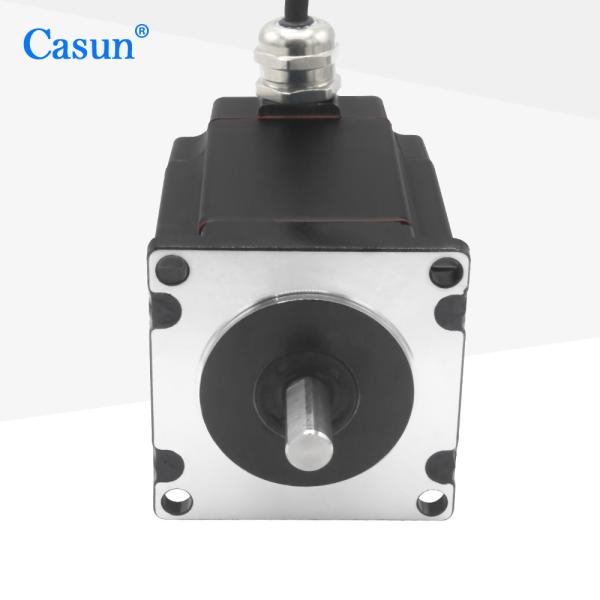

Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC

Name: Nema 23 Hybrid Stepper Motor 2Nm High Tough 76mm Body 285V Casun Motor CE RoHS for CNC
Brand: Casun
Price: 8.1 USD

Quality Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC for sale

Brand Name : Casun

Model Number : F57SHD4816-21B

Certification : CE,ROHS,ISO

Place of Origin : China

MOQ : 5PC

Price : $8.1~$9.38

Payment Terms : D/A, T/T, L/C, D/P

Supply Ability : 10000+PCS+Month

Delivery Time : 7-15 days

Packaging Details : Carton:38x29x18cm

Holding Torque : 2000 mN.m

Voltage : 2.85V

Current : 3A

Body Length : 76mm

Weight : 1 kg

Phase Resistance : 0.95 ohm ±10% （At 20℃）

Shaft Length : 20 mm

Phase : 2

Insulation Class : Class B

Contact Now

Factory Prices Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor with CE RoHS for CNC

Designed for demanding industrial applications, the Casun Nema 23 Hybrid Stepper Motor delivers exceptional 2N.m torque in a compact 76mm body, making it ideal for CNC machines, automated equipment, and high-precision motion systems. With CE & RoHS certification, this motor ensures both performance and compliance for global markets.

Features:

Bipolar or unipolar versions available
Hybrid stepper construction
Available in single- or double-shaft versions
CE and RoHS approved
Customizations on request

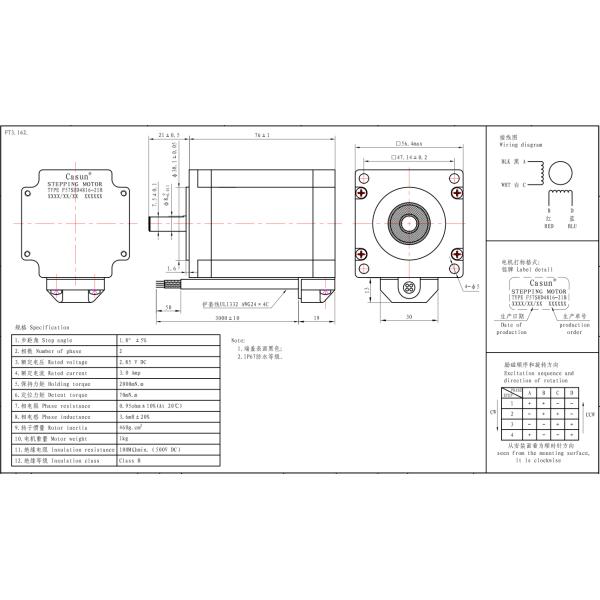

Dimensions

Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC

Motor Specifications

Step Angel	1.8°
Frame Size	76 mm
Number of Phase	2 Phase
Rated Current	3 Amp
Holding Torque	2000 mN.m
Resistance	0.95 ohm
Inductance	3.6 mH
Rotor Inertia	460 g.cm²
Motor weight	1 kg
Connection	Bipolar

Operating Specifications

Motor

Step Angle: 1.8°

Maximum Temperature: 80°C maximum

Ambient Temperature: -20 °C to 50°C

Storage Temperature -20: °C to 100°C

Humidity Range: 85% or less, non-condensing

Magnet Wire Insulation: Class B 130 deg C

Insulation Resistance: 100M Ohm at 500 VDC

Dielectric Strength: 500 VDC for 1 min

Encoder

Voltage: 5 v

Output: A + A - B + B - Z + Z -

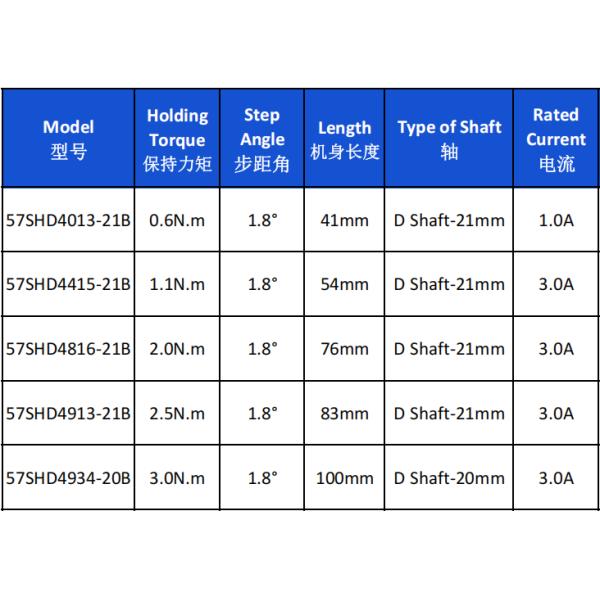

Submodels

Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC

Download

If our standard motor cannot meet your needs,

we can customize the motor according to your needs

Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

Options:
Encoder | Brake | Gearbox | Shaft

Nema 23 Hybrid Stepper Motor 2N.m High Tough 76mm Body 2.85V Casun Motor CE RoHS for CNC

Please click the "Get a quote" button below to tell us your requirements.
