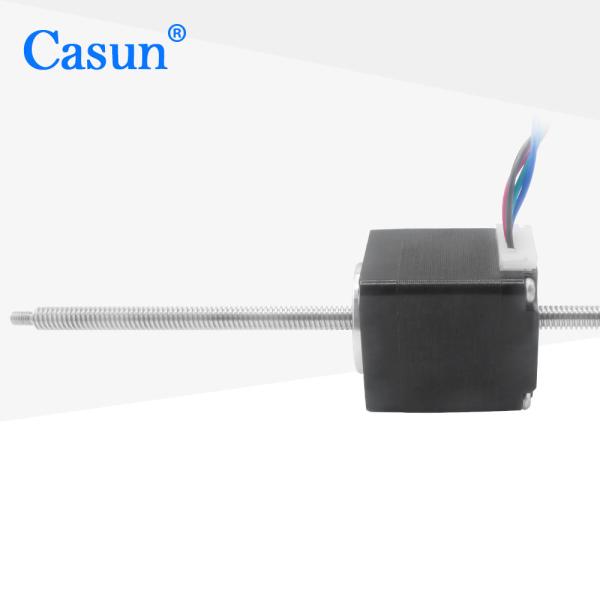

0.8A 4.64V Nema11 Stepper Motor Through Screw Motor Lead 8mm for SMT/CNC milling machin
The 42mm Hybrid Stepper Motor Series offers powerful holding torque in a variety of sizes.
Use with a microstepping driver to reduce vibration and achieve higher step resolution.
Choose a baseline version or request your own customized configuration.
Features:
-
Bipolar or unipolar versions available
-
Hybrid stepper construction
-
Available in single or double shaft versions
-
CE and RoHS approved
-
Customizations on request
Motor Specifications
| Step Angel | 1.8 ° |
| Fram Size | 28mm |
| Number of Phase | 2 Phase |
| Rated Current | 0.8Amp |
| Holding Torque | 80mN.m |
| Resistance | 5.8ohm |
| Inductance | 4.1mH |
| Rotor Inertia | 9g-cm² |
| Motor weight | 0.12kg |
| Lead Screw | Tr5X2 |
| Connection | Bipolar |
Operating Specifications
Step Angle: 1.8°
Maximum Temperature :80°C maximum
Ambient Temperature: -20 °C to 50°C
Storage Temperature -20: °C to 100°C
Humidity Range (%) :85% or less, non-condensing
Magnet Wire Insulation :Class B 130 deg C
Insulation Resistance :100M Ohm at 500 VDC
Dielectric Strength :500 VDC for 1 min
Shaft Radial Play:0.02Max. (450g-load)
Shaft Axial Play:0.08Max. (450g-load)
Max. radial force:28N (20mm from the flange)
Max. axial force):10N
Torque Curves
Submodels
| Model | Holding Torque | Step Angle | Motor Length | Type of Shaft | Rated Current |
| 42SHD4950 | 0.13N.m | 1.8° | 20mm | D Shaft-20mm | 1.0A |
| 42SHD4003 | 0.26N.m | 1.8° | 34mm | D Shaft-20mm | 0.4A |
| 42SHD0261 | 0.45N.m | 1.8° | 40mm | D Shaft-20mm | 1.68A |
| 42SHD4425 | 0.59N.m | 1.8° | 48mm | D Shaft-24mm | 2.0A |
| 42SHD4813 | 0.8N.m | 1.8° | 60mm | D Shaft-24mm | 2.1A |
| Body Length | Diameter of Screw | Pitch | Length of Screw |
20 mm
34 mm
40 mm
48 mm
60 mm
| 5 | 2 | 20-1000 mm |
| 8 |
| 6.35 | 1.27 |
| 3.175 |
| 6.35 |
| 6.5 | 3 |
| 6.35 |
| 8 | 1 |
| 2 |
| 4 |
| 8 |
| 12 |
Download
If our standard motor cannot meet your needs,
we can customize the motor according to your needs
Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.
